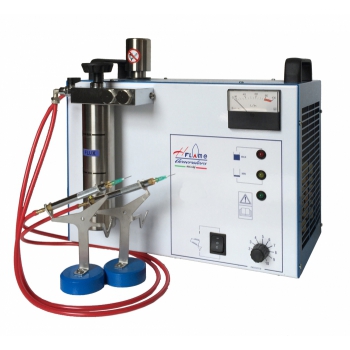

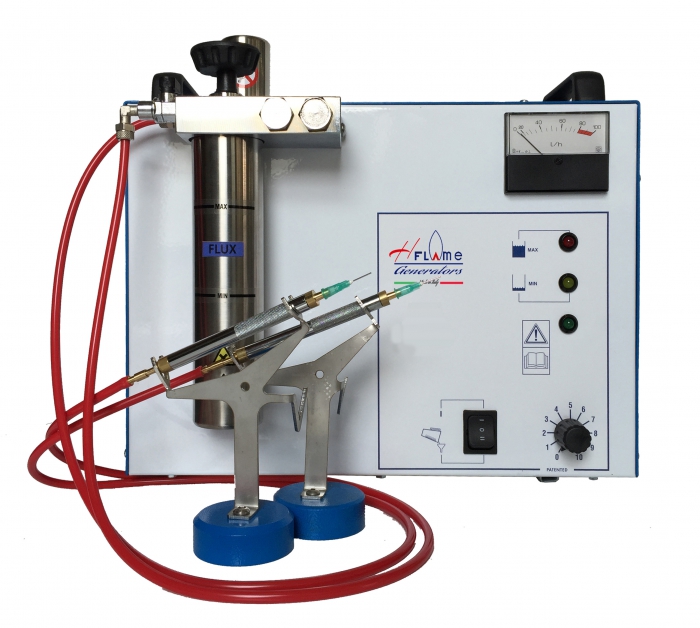

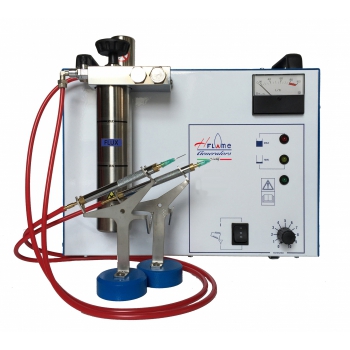

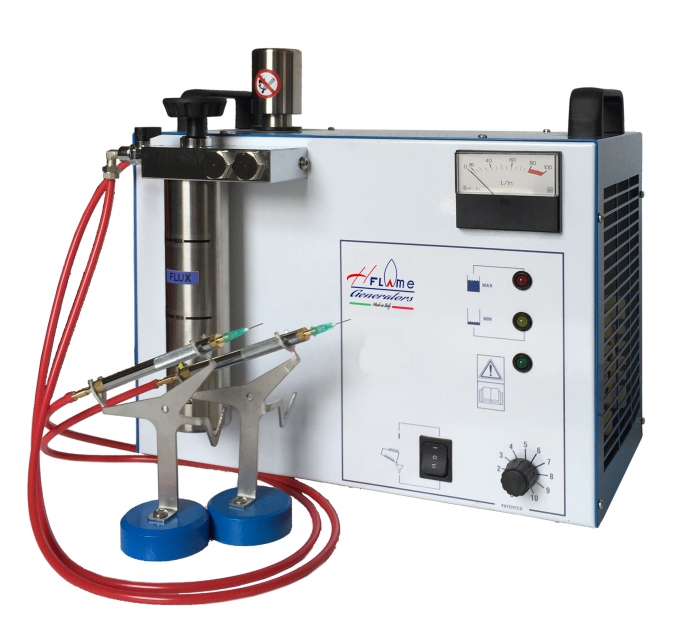

L/80 Mixed Gas (Hydrogen & Oxygen) Generators

L80
Download
Main benefits:
VERY DRY GAS

DRY FLAME and consequent CLEAN BRAZING SURFACE.

LONG LIFE DE-OXIDIZER (Flux)

ECONOMICAL (LOW COST MONTHLY USAGE)

"PIN POINT" PRECISE FLAME

Linear Manual Power Adjuster

HIGH QUALITY FLAME

NO OXIDATION, NO CO2 EMISSIONS and NO CONDENSATION.

LIFE SPAN

8 - 10 YEARS (average duration)

NO BACK FLAME

Extremely SAFE and no more dangerous gas tank storage.

EASY TO MAINTAIN

Need to Replace only 4 Gaskets, a few Valves and Electrolyte, ONCE A YEAR.

LIGHT TORCH

Weight of 57 grams, connected to a rubber hose for a easy movement.

6 - 8 HOUR NON-STOP WORKING

With the use of only 1 glass of FLUX and demineralized water.

Solder, Casting, Brazing, Welding

You can use any precious (even platinum) and non-precious metal.

Essential use for a variety of applications in industry

Brazing in eyewear, glass processing, methacrylate polishing, electromechanics, precision mechanics, electronics, heat exchangers, thermocouples, appliances, air conditioners, heat treatments in the atmosphere, wherever a brazing flame is necessary.

Easy to repair

VERY EASY TO REPAIR

L/80 Mixed Gas (Hydrogen & Oxygen) Generators

Product Description:

Designed and custom made, especially suitable for industrial technicians.

It is designed for the use of 2 torches at the same time, you may also use just 1 torch if desired. The MODEL L/80 is ideal for working in pairs or conveying the whole power of the machine into a single (1) torch.

We frequently recommend this unit, for its flexibility and versatility, for a variety of additional features
and benefits, just by adding a small amount to the cost of the previous model.

Further benefits, maybe ignored at first, soon several qualities of the machine are appreciated like:

  1. Power can be doubled (like two L/45 working together).
  2. You can have 2 simultaneous workers.
  3. You can obtain a larger flame with a bigger needle either with the standard torch or with the special torch (by the use of an adaptor).
  4. The needle gauge gives ​a ​better visual display.
  5. There are 3 safety systems in place: a Flame ​Arrester, a Pressure switch (max.) and a Safety Cap.
  6. Offers more possibilities for BRAZING and WELDING at various sizes from very light to larger items​ up to 20 grams in weight.
  7. Prior to delivery, we carry out a FULL-3-DAY quality control on all of our mixed gas systems. Such a high standard control guarantees that our machines are ready to go, avoiding any technical issues when they get started.​
  8. With Max power, using One Outlet, you can perform a CAST of 12 grams of precious metals, in just 2 minutes.​ (There are 2 outlets and this provides additional flexibility).
  9. Compared to the Model 45, with the Model L80, you can perform a larger variety of jewelry objects​ such as: chains, retipping prongs, resize rings, anneal larger flat metal plates.​
  10. We would also like to remind our potential customers, that the MODEL L/80, with its very low initial purchase cost, is usually one of the best choices since it also contains many user variables, that at first may not be as noticeable, but that all our users are glad to have as time passes by. The purchase of model L/80 is even more affordable if we take into consideration what it offers.

ATTENTION: We recommend to our customers to purchase the YEARLY MAINTENANCE KIT. This operation MUST be performed once per year.

The yearly upgrade of our systems, through the implementation of the Yearly Maintenance Kit, will keep our machine functioning at peak performance, maintain efficiency and reliability for approximately 10 years.





Included accessories:
  • Standard Torch
  • BURNER TIPS (PE/STEEL)
  • Check Valve
  • BACKFIRE ARRESTER
  • Fireproof Plastic Hose
Optionals:
  • Nozzles
  • Magnetic stainless steel SPECIAL TORCH HOLDER
  • YEARLY MAINTENANCE KIT L/80
  • SPECIAL TORCH with shut-off valve and BACK FLAME ARRESTER
Technical features:
Gas
Mixed Gas
Gas Production
80 Lt/h
Demineralized Water consumption
41 cc / h
Alcohol consumption
15 cc / h
Booster Tank capacity
225 cc
Max power
Watt 590 (220/230 V.)
Electrolytic solution quantity
1 Lt (0,264 US gal)
Dimensions
38,5 x 28,5 x 36 cm (L x P x H )
Weight
25 Kg
Fuse
8 A. (230 V.) - 10 A (115).
Working pressure
1 BAR
Compare the technical features of all the models
Chemicals Needed:

ELECTROLYTIC SOLUTION: US gal 0,235 (0,890 Lt) of DEMINERALIZED WATER + 12,7 ounces (360 g.) of KOH (CAUSTIC POTASH or POTASSIUM HYDROXIDE).

FLUX (DEOXIDIZER): US GAL 0.264 (1 Lt) of METHYL ALCOHOL + 0.529 - 0.705 ounces ( 15 - 20 g.) of BORIC ACID.



Applications:

List of possible applications such as:

  • Eyewear industry and shops
  • Glass processing
  • Polishing methacrylate
  • Electromechanical
  • Precision mechanics
  • Electronics
  • Heat exchangers
  • Thermocouples
  • Appliances
  • Air conditioners
  • Heat treatment (atmospheric)
  • Renewable energy
  • Welding and fusion of metals such as gold, silver, platinum, palladium, copper, brass, aluminum, nickel, nickel chromium, pond
  • All applications where precision welding is required
Discover all the possible applications
