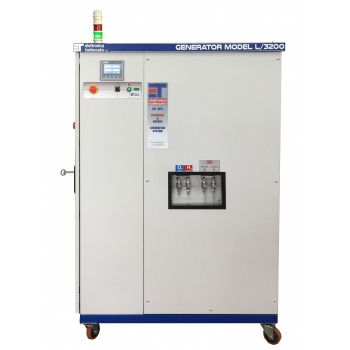

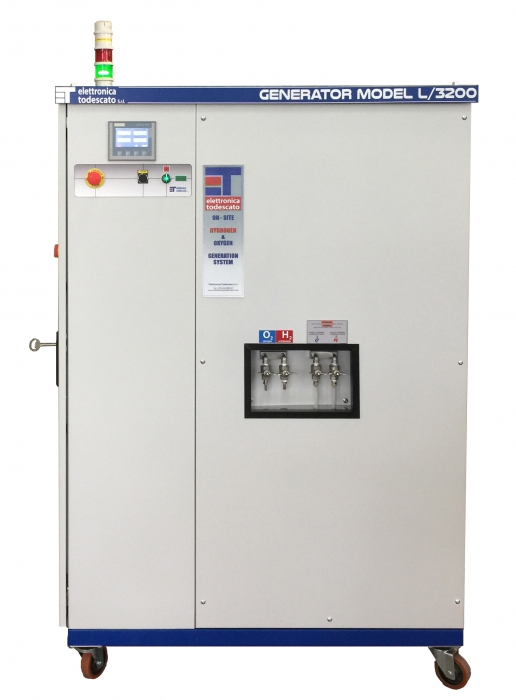

L/3200 Separated Gas (Hydrogen & Oxygen) Generators

L 3200
Download
Main benefits:
VERY DRY GAS

DRY FLAME and consequent CLEAN BRAZING SURFACE.

LONG LIFE DE-OXIDIZER (Flux)

ECONOMICAL (LOW COST MONTHLY USAGE)

"PIN POINT" PRECISE FLAME

Linear Manual Power Adjuster

HIGH QUALITY FLAME

NO OXIDATION, NO CO2 EMISSIONS and NO CONDENSATION.

LIFE SPAN

8 - 10 YEARS (average duration)

NO BACK FLAME

Extremely SAFE and no more dangerous gas tank storage.

EASY TO MAINTAIN

Need to Replace only 4 Gaskets, a few Valves and Electrolyte, ONCE A YEAR.

LIGHT TORCH

Weight of 57 grams, connected to a rubber hose for a easy movement.

6 - 8 HOUR NON-STOP WORKING

With the use of only 1 glass of FLUX and demineralized water.

Solder, Casting, Brazing, Welding

You can use any precious (even platinum) and non-precious metal.

Essential use for a variety of applications in jewelry

Jewelry, costume jewelry, gold, silver precious and non-precious other metals or any jewelry oriented work when a flame is needed.

Easy to repair

VERY EASY TO REPAIR

L/3200 Separated Gas (Hydrogen & Oxygen) Generators

Product Description:

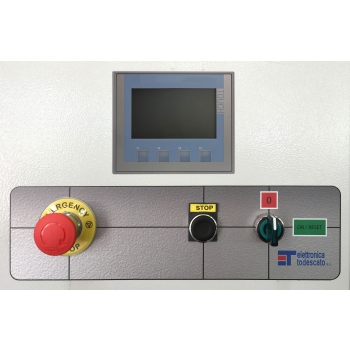

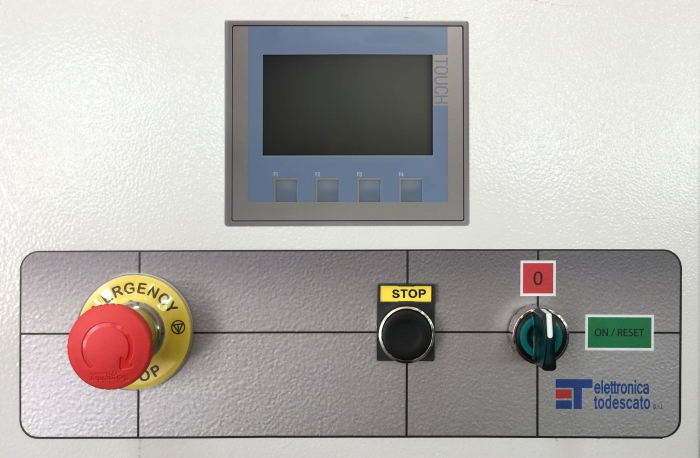

The operating principles of these generators are based on the dissociation of electrolytes from water to obtain high purity hydrogen and oxygen separately for thermal treatments in general. All machine operating parameters are managed by a self-diagnostic microprocessor and alphanumeric display.
Maintenance is extremely simple.

WE ARE PROUD OF HAVING BEEN MAKERS OF HIGH QUALITY HYDROGEN GENERATORS FOR OVER 50 YEARS, WITH 20,000 UNITS SOLD WORLD WIDE.

Prior to delivery, we carry out a FULL 2 WEEK quality control on all of our separated gas systems. Such a high standard control guarantees that our machines are ready to go, avoiding any technical issues when they get started.​

Included accessories:
Nessun accessorio incluso
Technical features:
Gas
Separated Gas
Gas Production
H2: 2133 Lt/h - O2: 1066 Lt/h
Demineralized Water consumption
1,6 Lt/h
Alcohol consumption

Booster Tank capacity

Max power
10,5 KW
Electrolytic solution quantity

Dimensions
95x65x162 cm (L x P x H )
Weight
454 Kg
Fuse

Working pressure

Compare the technical features of all the models
Applications:

Possible Applications List:

  • JEWELRY: Soldering, welding and melting of metals such as Gold, silver, platinum, palladium, copper, brass, aluminum, nickel, nickel chromium, tin.
Discover all the possible applications
